TMD to Smile Design (case done by programmed treatment planning in a conservative way)

Home/Photo Galleries

Figure 1 Close up smile before treatment

Figure 1 Close up smile before treatment

Figure 2 Full face before treatment

Figure 2 Full face before treatment

Figure 3 Anterior guidance before treatment

Figure 3 Anterior guidance before treatment

Figure 4 Right side canine guidance before treatment (anterior group function)

Figure 4 Right side canine guidance before treatment (anterior group function)

Figure 5 Left side canine guidance before treatment (anterior group function)

Figure 5 Left side canine guidance before treatment (anterior group function)

Figure 6 Maxillary occlusal view before treatment

Figure 6 Maxillary occlusal view before treatment

Figure 7 Mandibular occlusal view before treatment

Figure 7 Mandibular occlusal view before treatment

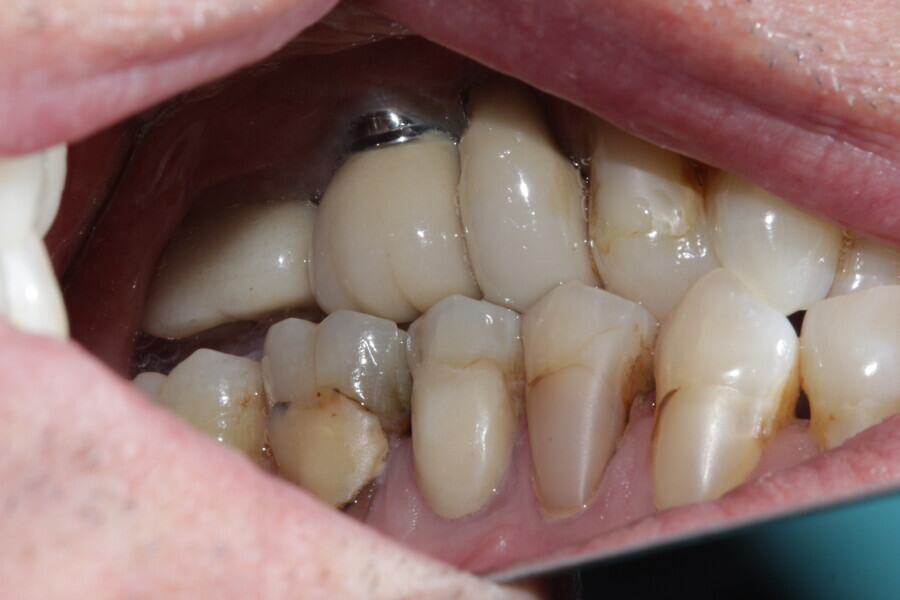

Figure 8 Right side in occlusion before treatment

Figure 8 Right side in occlusion before treatment

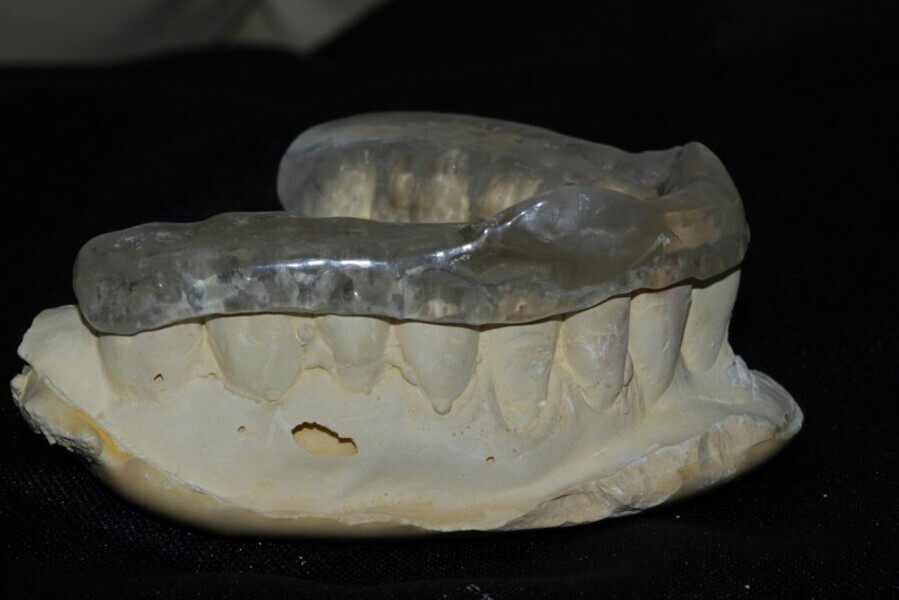

Figure 9 Full coverage occlusal splint with anterior & canine guidances preop

Figure 9 Full coverage occlusal splint with anterior & canine guidances preop

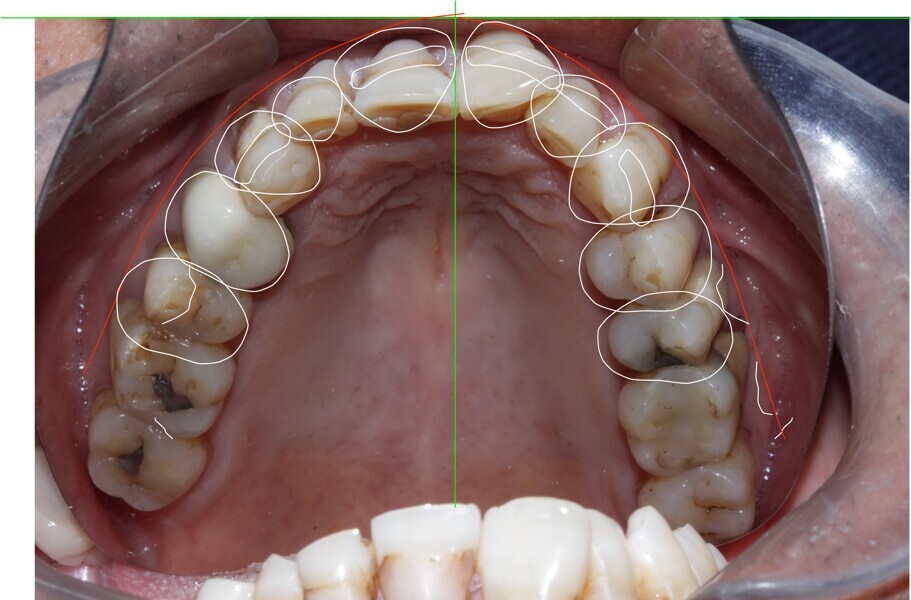

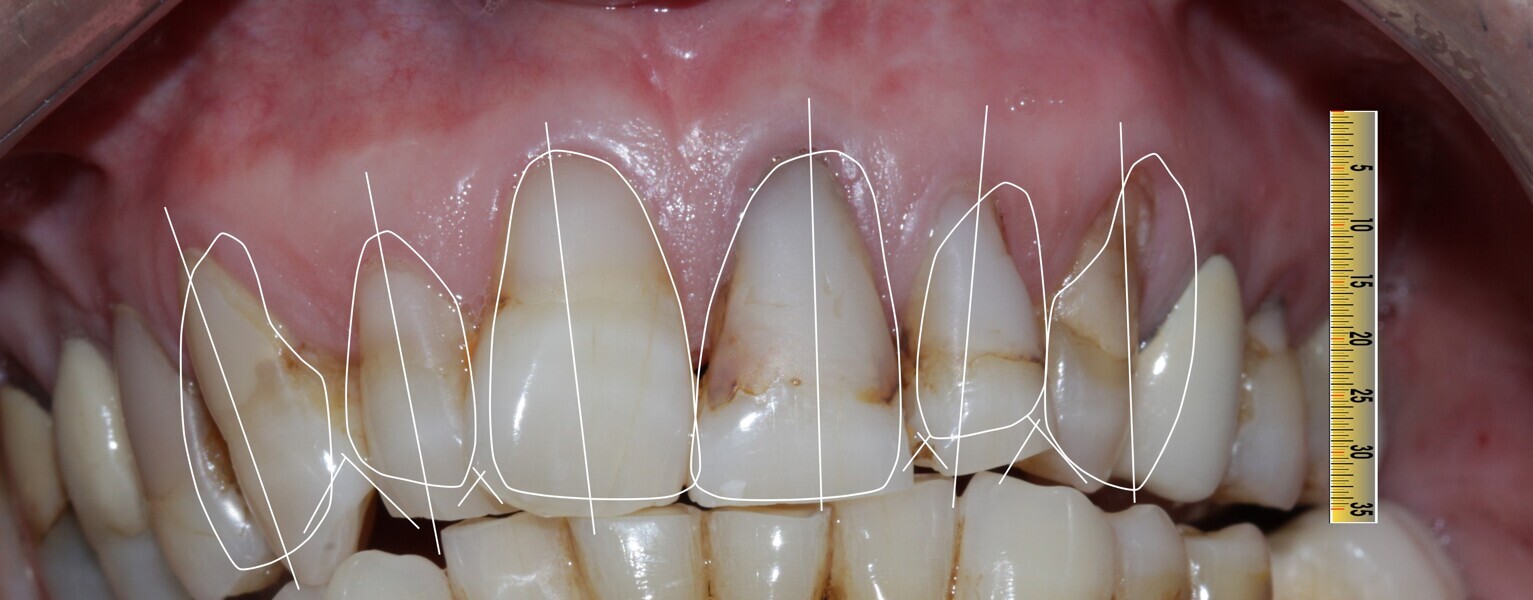

Figure 10 Digital smile desinging planning

Figure 10 Digital smile desinging planning

Figure 11 Digital smile designing planning

Figure 11 Digital smile designing planning

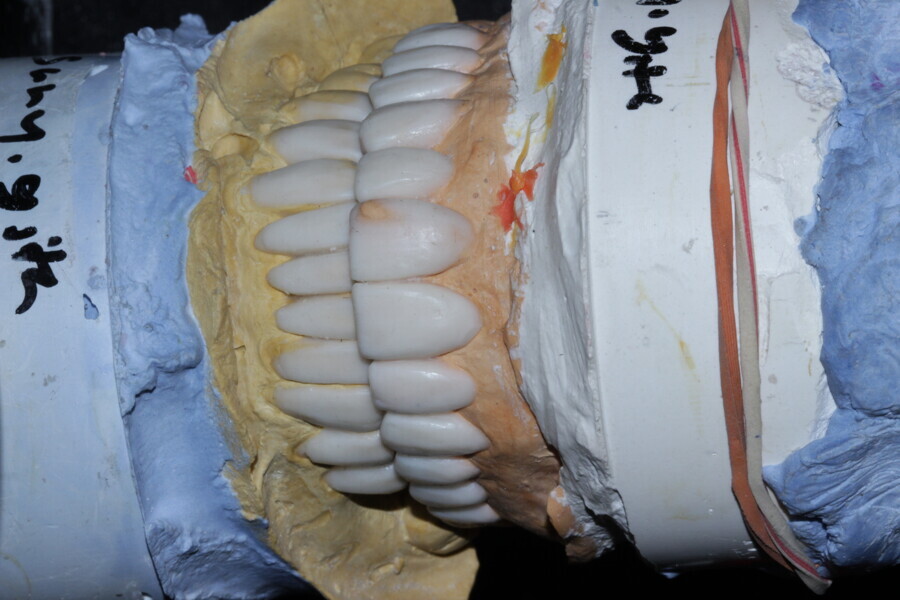

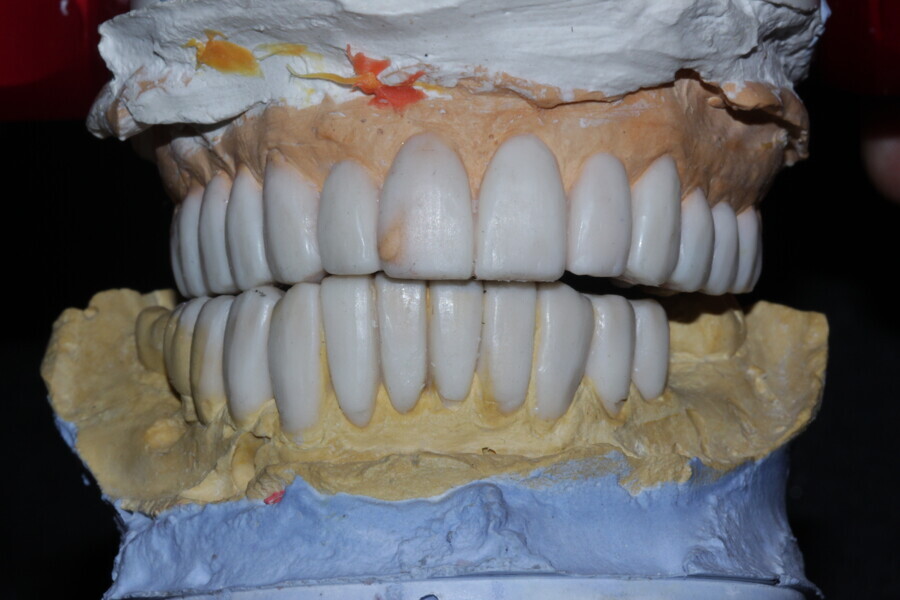

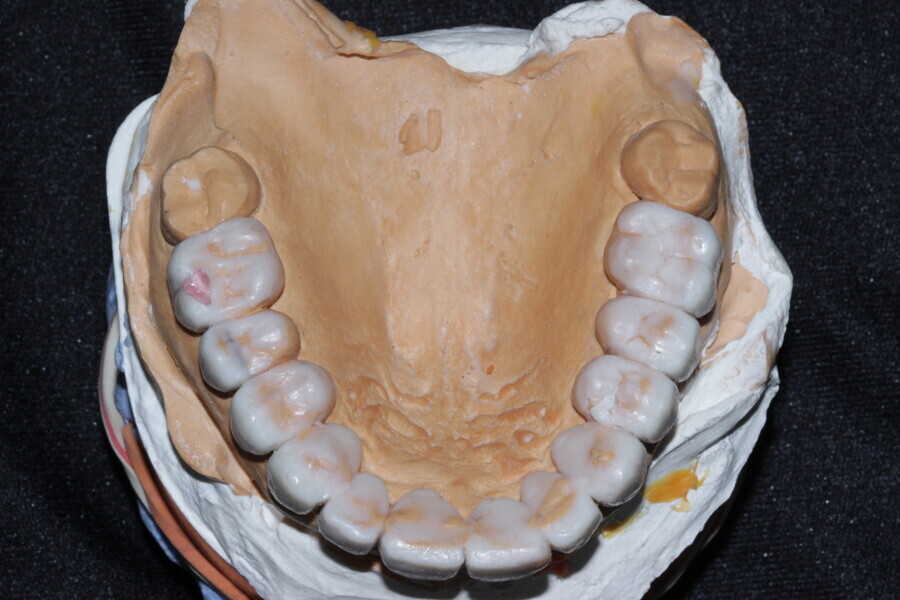

Figure 12 Diagnostic wax up as per digital smile designing planning

Figure 12 Diagnostic wax up as per digital smile designing planning

Figure 13 Facebow record

Figure 13 Facebow record

Figure 14 Diagnostic wax up as per digital smile designing planning

Figure 14 Diagnostic wax up as per digital smile designing planning

Figure 15 Diagnostic wax up as per digital smile designing planning

Figure 15 Diagnostic wax up as per digital smile designing planning

Figure 16 Test drive as per digital smile designing planning ( made putty index of diagnostic wax up & poured protemp in it & placed in mouth without teeth prep.)

Figure 16 Test drive as per digital smile designing planning ( made putty index of diagnostic wax up & poured protemp in it & placed in mouth without teeth prep.)

Figure 17 Test drive in mouth as per digital smile designing planning intraoral view

Figure 17 Test drive in mouth as per digital smile designing planning intraoral view

Figure 18 Preparationn through test drive or provisionals

Figure 18 Preparationn through test drive or provisionals

Figure 19 Anterior tooth preparation

Figure 19 Anterior tooth preparation

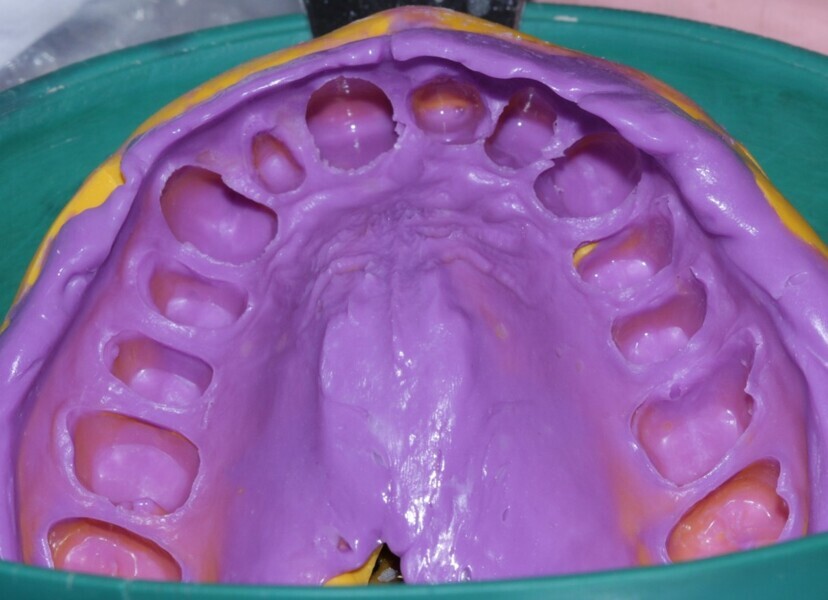

Figure 20 Final light body putty impression

Figure 20 Final light body putty impression

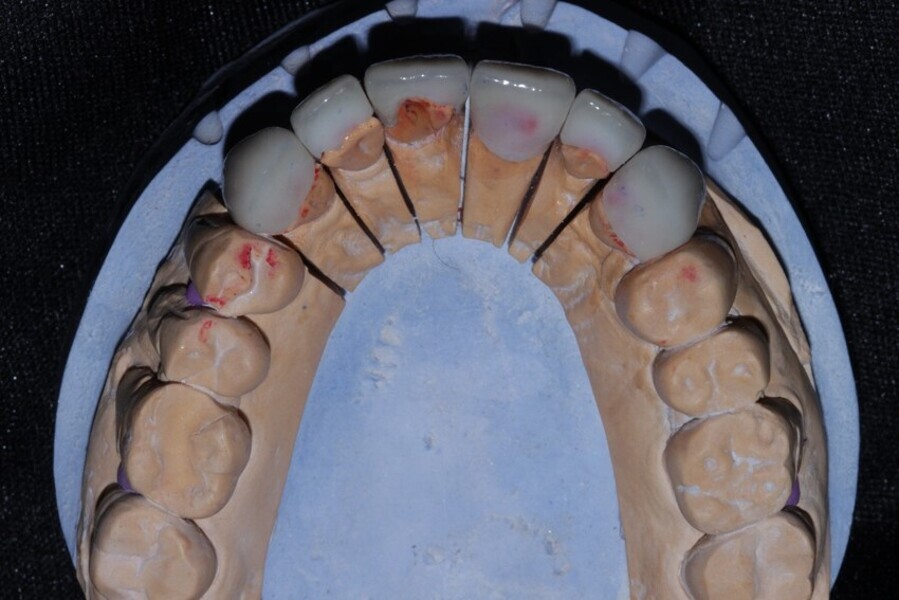

Figure 21 Palatal view of upper anterior emax 2 layered restorations all veneers except 21

Figure 21 Palatal view of upper anterior emax 2 layered restorations all veneers except 21

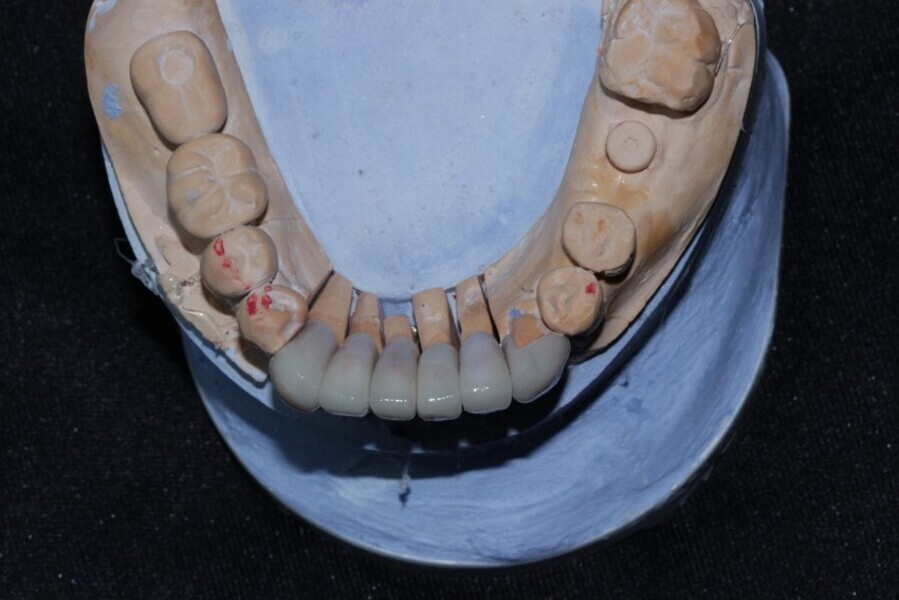

Figure 22 lingual view of lower anterior emax 2 layered restorations( to close interdental spaces we planned crowns)

Figure 22 lingual view of lower anterior emax 2 layered restorations( to close interdental spaces we planned crowns)

Figure 23 Alu wax bite for posterior restoration

Figure 23 Alu wax bite for posterior restoration

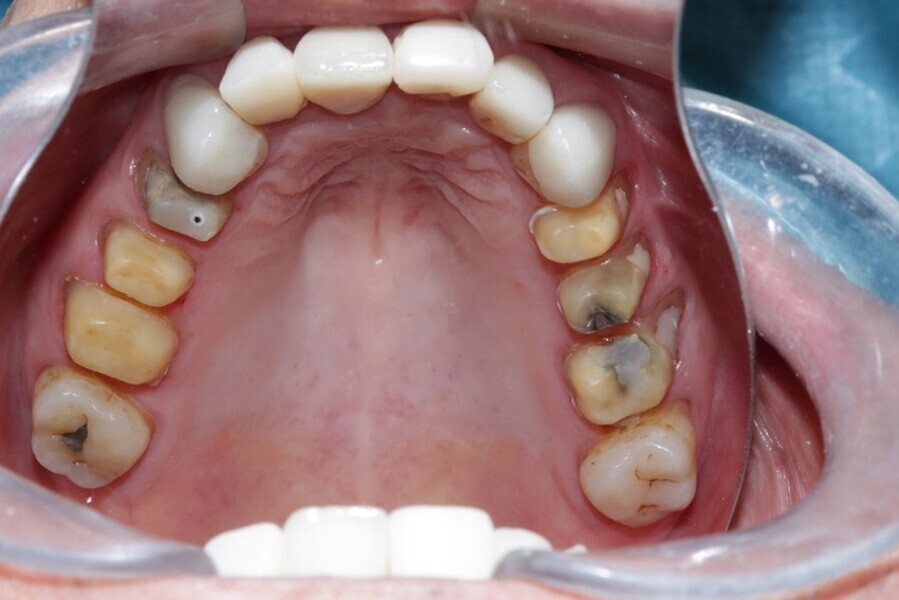

Figure 24 Tooth prep posterior maxillary teeth

Figure 24 Tooth prep posterior maxillary teeth

Figure 25 Tooth prep posterior mandibular teeth

Figure 25 Tooth prep posterior mandibular teeth

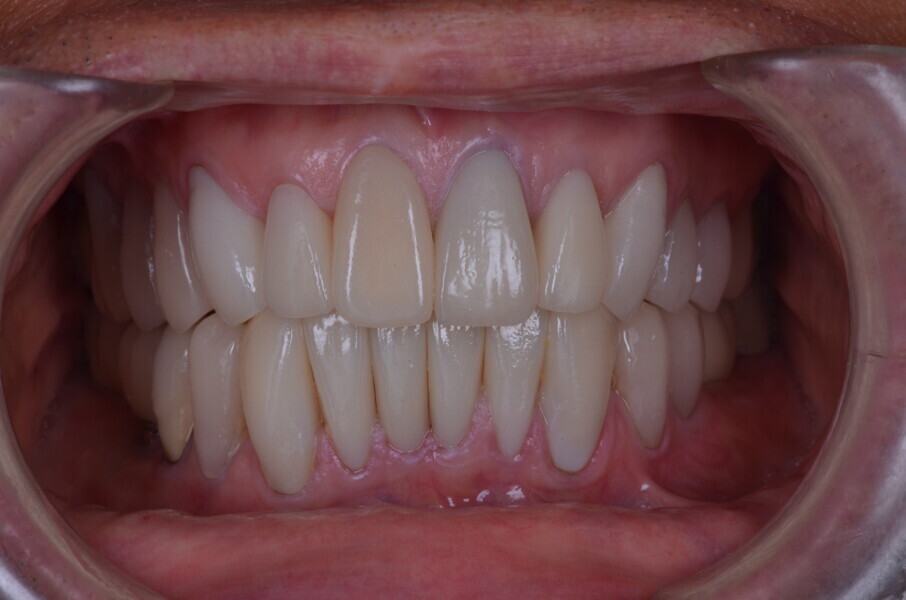

Figure 26 Closed mouth post op

Figure 26 Closed mouth post op

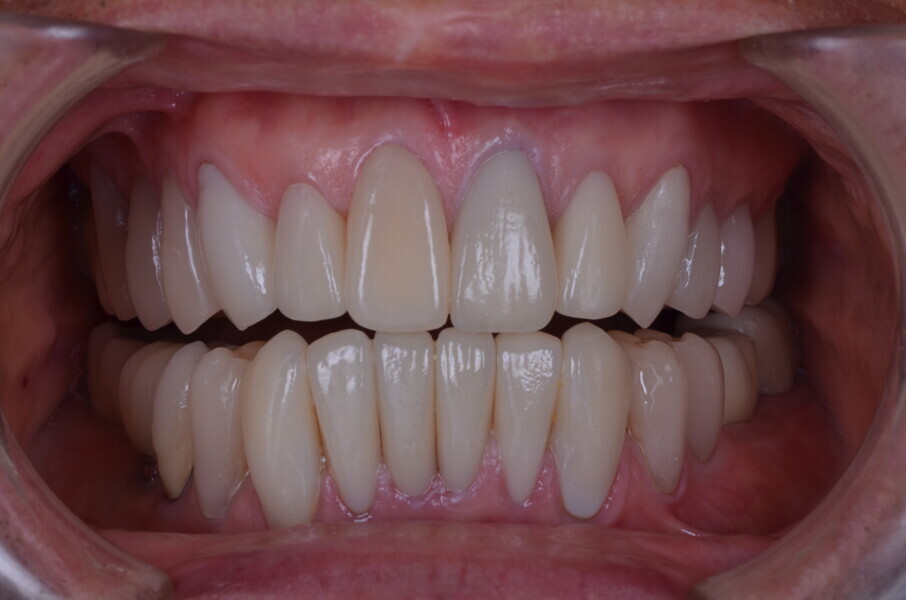

Figure 27 Anterior guidance

Figure 27 Anterior guidance

Figure 28 Post op left canine guidance

Figure 28 Post op left canine guidance

Figure 29 Post op canine guidance right side

Figure 29 Post op canine guidance right side

Figure 30 Madibular occlusal view

Figure 30 Madibular occlusal view

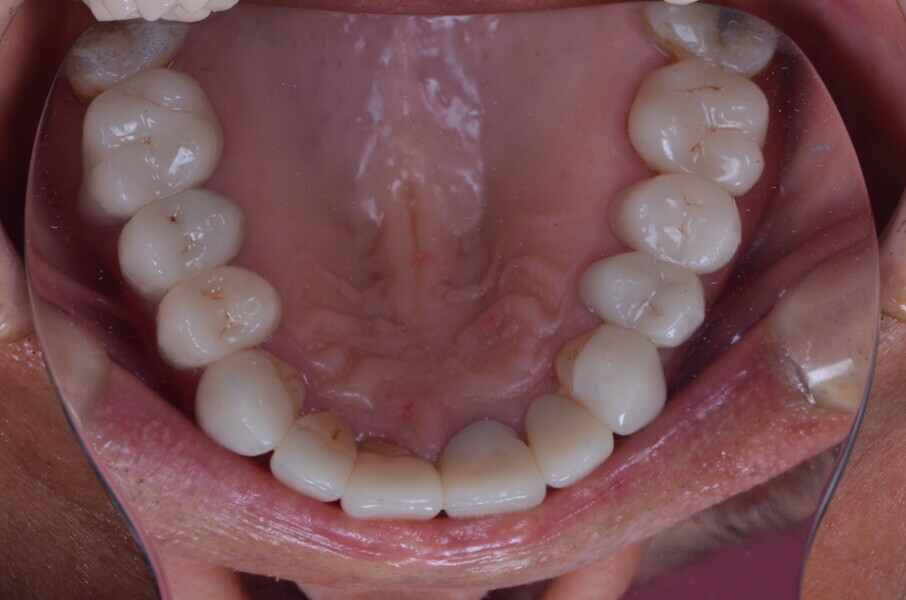

Figure 31 Occlusal view maxillary

Figure 31 Occlusal view maxillary

Figure 32 Right side occlusion

Figure 32 Right side occlusion

Figure 1 Close up smile before treatment

Figure 2 Full face before treatment

Figure 3 Anterior guidance before treatment

Figure 4 Right side canine guidance before treatment (anterior group function)

Figure 5 Left side canine guidance before treatment (anterior group function)

Figure 6 Maxillary occlusal view before treatment

Figure 7 Mandibular occlusal view before treatment

Figure 8 Right side in occlusion before treatment

Figure 9 Full coverage occlusal splint with anterior & canine guidances preop

Figure 10 Digital smile desinging planning

Figure 11 Digital smile designing planning

Figure 12 Diagnostic wax up as per digital smile designing planning

Figure 13 Facebow record

Figure 14 Diagnostic wax up as per digital smile designing planning

Figure 15 Diagnostic wax up as per digital smile designing planning

Figure 16 Test drive as per digital smile designing planning ( made putty index of diagnostic wax up & poured protemp in it & placed in mouth without teeth prep.)

Figure 17 Test drive in mouth as per digital smile designing planning intraoral view

Figure 18 Preparationn through test drive or provisionals

Figure 19 Anterior tooth preparation

Figure 20 Final light body putty impression

Figure 21 Palatal view of upper anterior emax 2 layered restorations all veneers except 21

Figure 22 lingual view of lower anterior emax 2 layered restorations( to close interdental spaces we planned crowns)

Figure 23 Alu wax bite for posterior restoration

Figure 24 Tooth prep posterior maxillary teeth

Figure 25 Tooth prep posterior mandibular teeth

Figure 26 Closed mouth post op

Figure 27 Anterior guidance

Figure 28 Post op left canine guidance

Figure 29 Post op canine guidance right side

Figure 30 Madibular occlusal view

Figure 31 Occlusal view maxillary

Figure 32 Right side occlusion
