3D-printed modified activator for correction of skeletal Class II malocclusion

Why did you create it?

Class II malocclusion presents a major and common challenge to orthodontists. Class II discrepancies with mandibular deficiency during active growth are usually treated using myofunctional appliances. In patients, who have not yet crossed the adolescent growth spurt, removable functional appliances such as Activator, Bionator, Twin Block, and Frankel may be used.

The activator appliance which was designed by Andresen and Haupl (1908), has been proved a popular and clinically successful appliance. The complexity in the lab procedure and ill-fitting of the appliance made us think of fabricating the activator by 3D printing.

What problem does it solve?

The warpage of the wax during the transportation of the bite is avoided. The conventional method of impression making is eliminated as the impressions are made using an intraoral scanner. Chairside time consumed for constructing the bite is reduced. Human errors, such as porosity which is seen in the appliance while fabricating using the conventional method, are eliminated. It can be easily refabricated if lost or damaged. There is a precise fit and enhanced accuracy of the appliance compared to the conventionally fabricated appliance. Finishing and polishing time is reduced.

How did you test it?

A patient was selected with a Class II skeletal discrepancy with a deficient mandible. Two ice cream sticks were used to make notches for the desired occlusion. Upper and lower arches were scanned completely using an intra-oral scanner. The patient was then asked to position the mandible forward in the desired occlusion. The notches on the ice cream sticks were used as guidance to bite between the upper and lower incisors to help stabilize the desired occlusion. A complete bite scanning was performed using an intra-oral scanner in the desired occlusion. 3D reference models were then printed in the desired occlusion using a resin material.

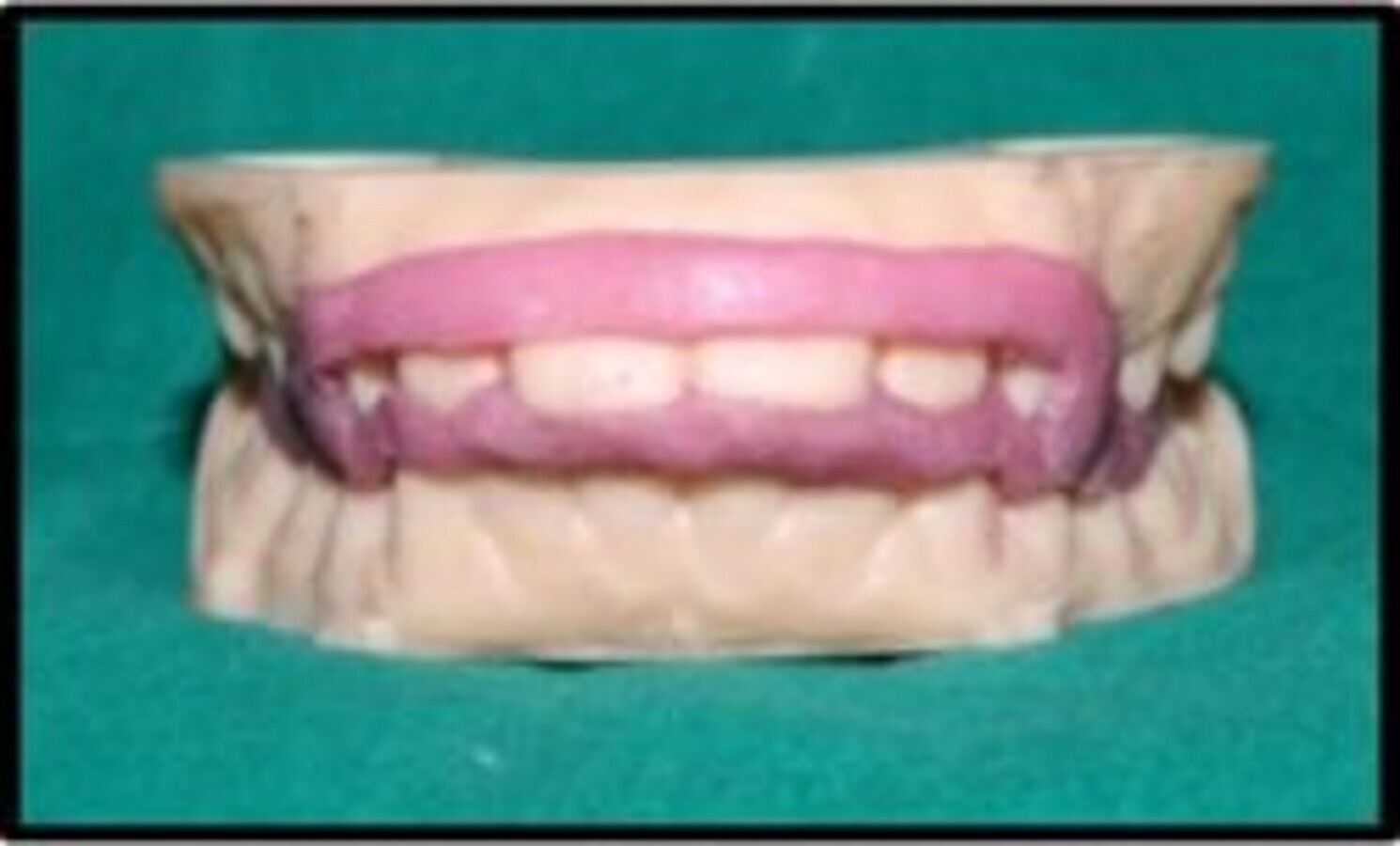

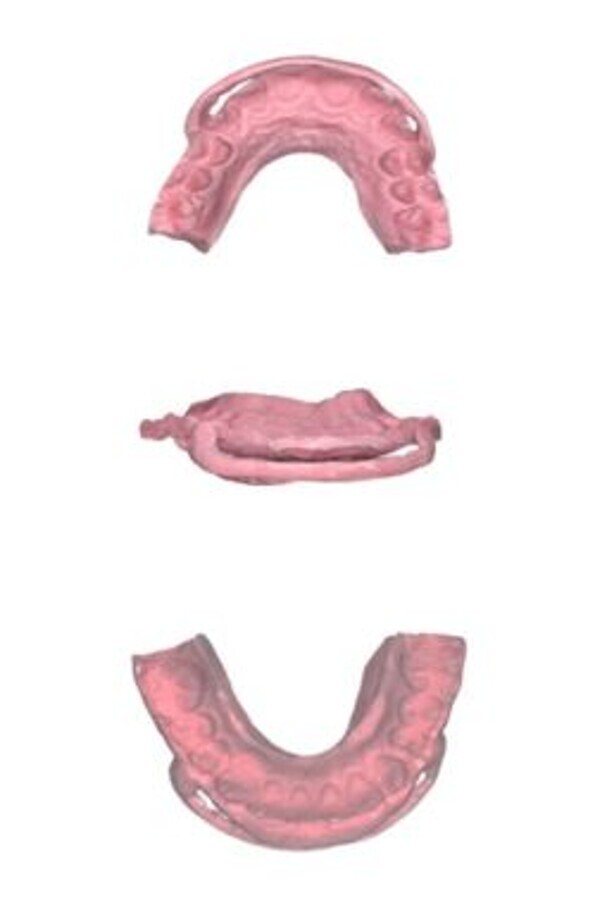

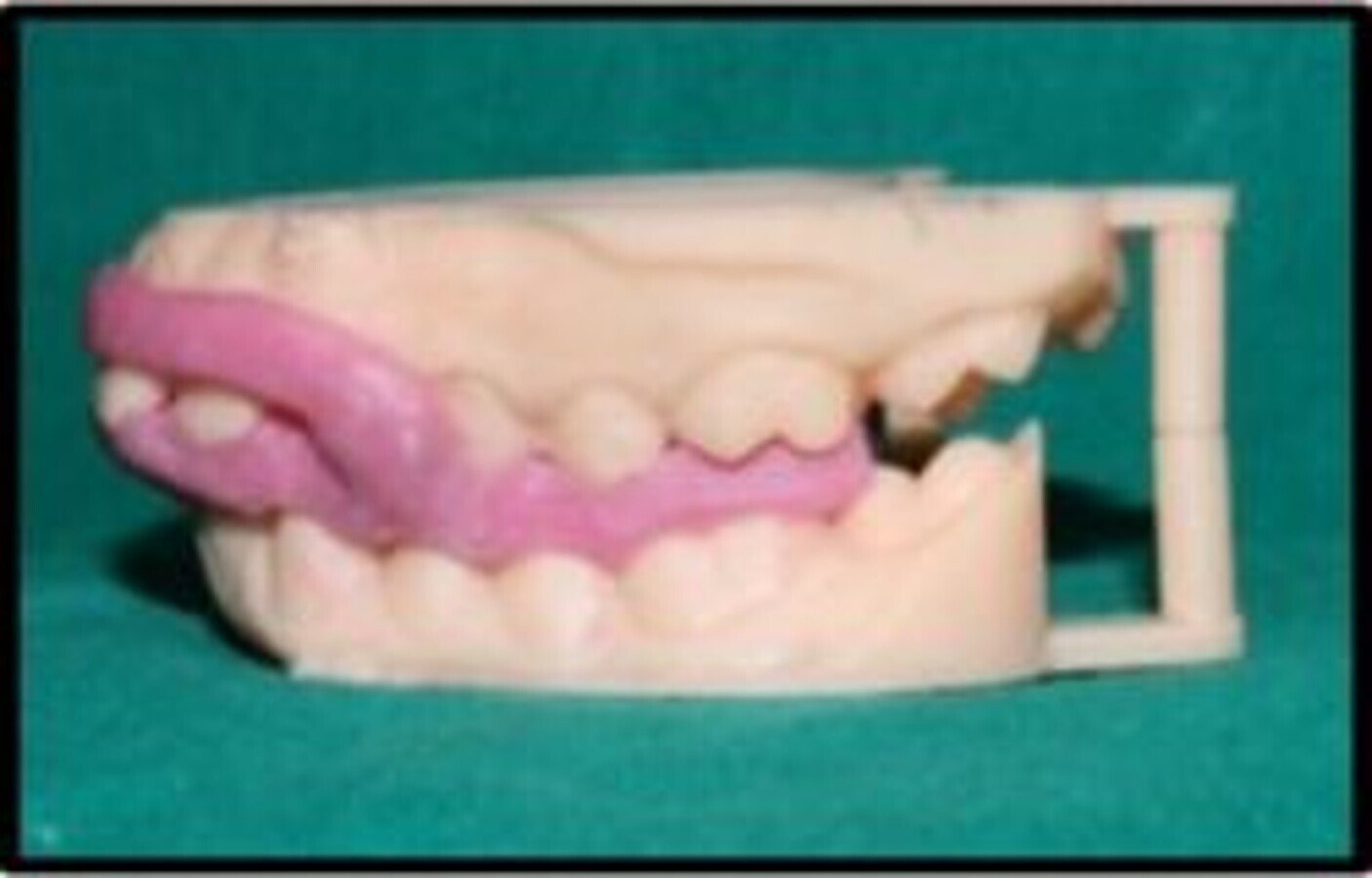

The appliance was designed virtually on the upper and lower models. A prototype of the activator was then fabricated using the same 3D printer. The prototype was used to check for the fit and finish on previously printed reference models. The activator was printed using a 3D printer with a biocompatible resin material.

Antero-posterior correction of buccal segments was achieved after eigth months of full-time wear. In occlusion, there were substantial lateral open bites and minimal functional occlusal contacts. Hence we concluded that a 3D-printed activator appliance can be efficient and effective in improving the sagittal molar relationship for the treatment of Class II skeletal malocclusion.

Current status and future plans

We have already completed the evaluation of this 3D-printed activator and have received promising data. We hope to achieve positive results which can help us in promoting our 3D-printed activator for routine use thus improving the overall efficiency of Class II discrepancies with mandibular deficiency.
