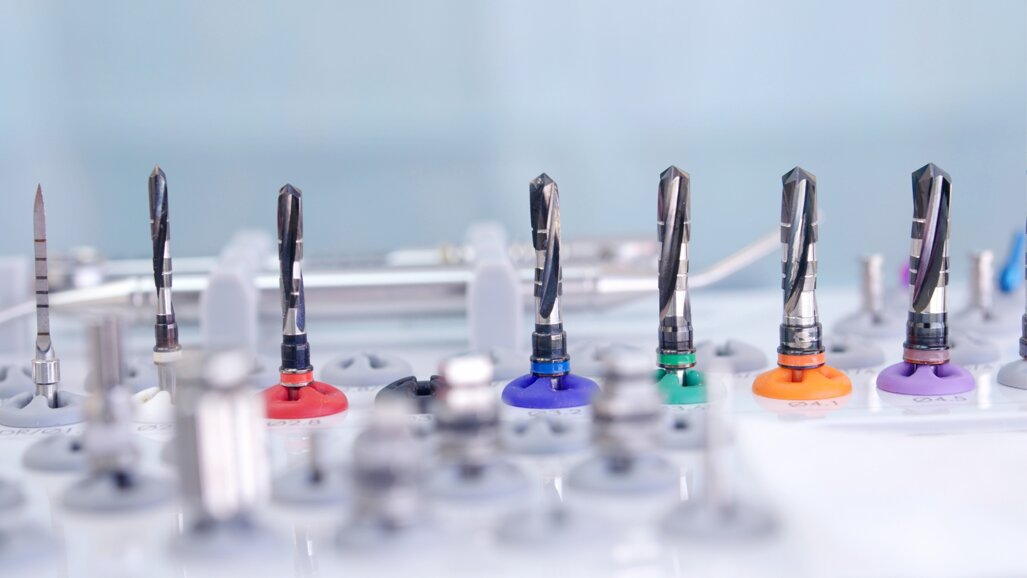

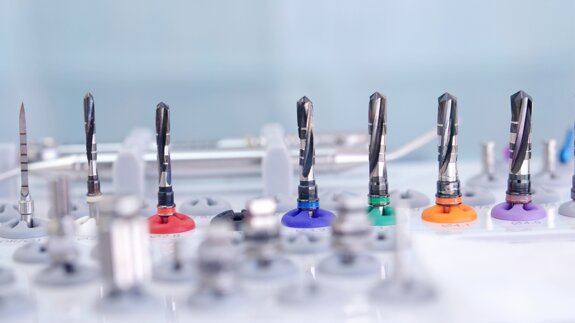

Tungsten carbide implant drills: The material innovation reshaping implant osteotomy

In implant dentistry, success is often discussed in terms of implant design, surface treatment, insertion torque, bone density and prosthetic planning. Yet one of the most critical steps occurs before the implant ever reaches the bone: preparing the osteotomy.

Every implant osteotomy is a controlled injury to living bone. The clinician must create a precise channel while preserving the biological conditions needed for healing and osseointegration. Among the many variables involved, heat generation remains one of the most important and most underestimated.

For decades, implant drills have been made mainly from surgical stainless steel. Stainless steel is strong, familiar and widely accepted. However, from a materials science perspective, steel has an important limitation: its relatively low thermal conductivity. In other words, when heat is created at the cutting interface, steel is not highly efficient at removing that heat from the bone-drill contact zone.

Tungsten carbide changes this equation.

Why thermal conductivity matters

During implant drilling, heat is produced by friction, chip formation, pressure, drill geometry, cortical bone thickness, cutting speed and contact time. If this heat is not removed efficiently, the osteotomy wall may be exposed to damaging temperatures. Thermal injury to bone has long been associated with delayed healing and compromised osseointegration.

The often-cited thermal safety threshold of approximately 47°C for one minute originates from classic work on heat-induced bone injury. Although clinical drilling is more complex than a laboratory heating model, the principle remains highly relevant: both temperature and exposure time matter.

Traditional thinking has focused heavily on irrigation as the primary method of heat control. Irrigation is certainly important in many protocols, but it does not address the drill's thermal behaviour. The drill is not simply a cutting object. It is also a heat-transfer object.

A drill with higher thermal conductivity can act as a heat sink, drawing heat away from the cutting interface and transporting it along the drill body. This is where tungsten carbide offers a major advantage over stainless steel.

A bench experiment on heat transfer

A controlled bench experiment was conducted to explore how drill material influences heat transfer. The model was intentionally simple: a small, defined volume of hot water was used to compare how quickly heat was removed when a room-temperature drill was introduced.

The experiment used 10 mL of water heated to 80°C in a paper cup at an ambient room temperature of 24°C. A contact thermocouple recorded temperature changes over time. Three conditions were compared: a Ø5.5 mm carbide Crown Down drill introduced at room temperature, a Ø5.5 mm steel implant drill introduced at room temperature and a no-drill control allowing natural cooling.

The data were smoothed within the instrument tolerance of ±1°C and anchored between 80°C and 70°C to allow direct comparison.

The results were striking. The carbide drill reached 75°C in approximately 3.4 seconds. The steel drill reached the same temperature in approximately 24.1 seconds. The no-drill control reached 75°C in approximately 25.0 seconds.

In other words, the carbide drill removed heat from the hot micro-volume about seven times faster in the early cooling phase than the steel drill. The average cooling rate was approximately 0.333°C/s for carbide, compared with approximately 0.185°C/s for steel and 0.217°C/s for the no-drill control.

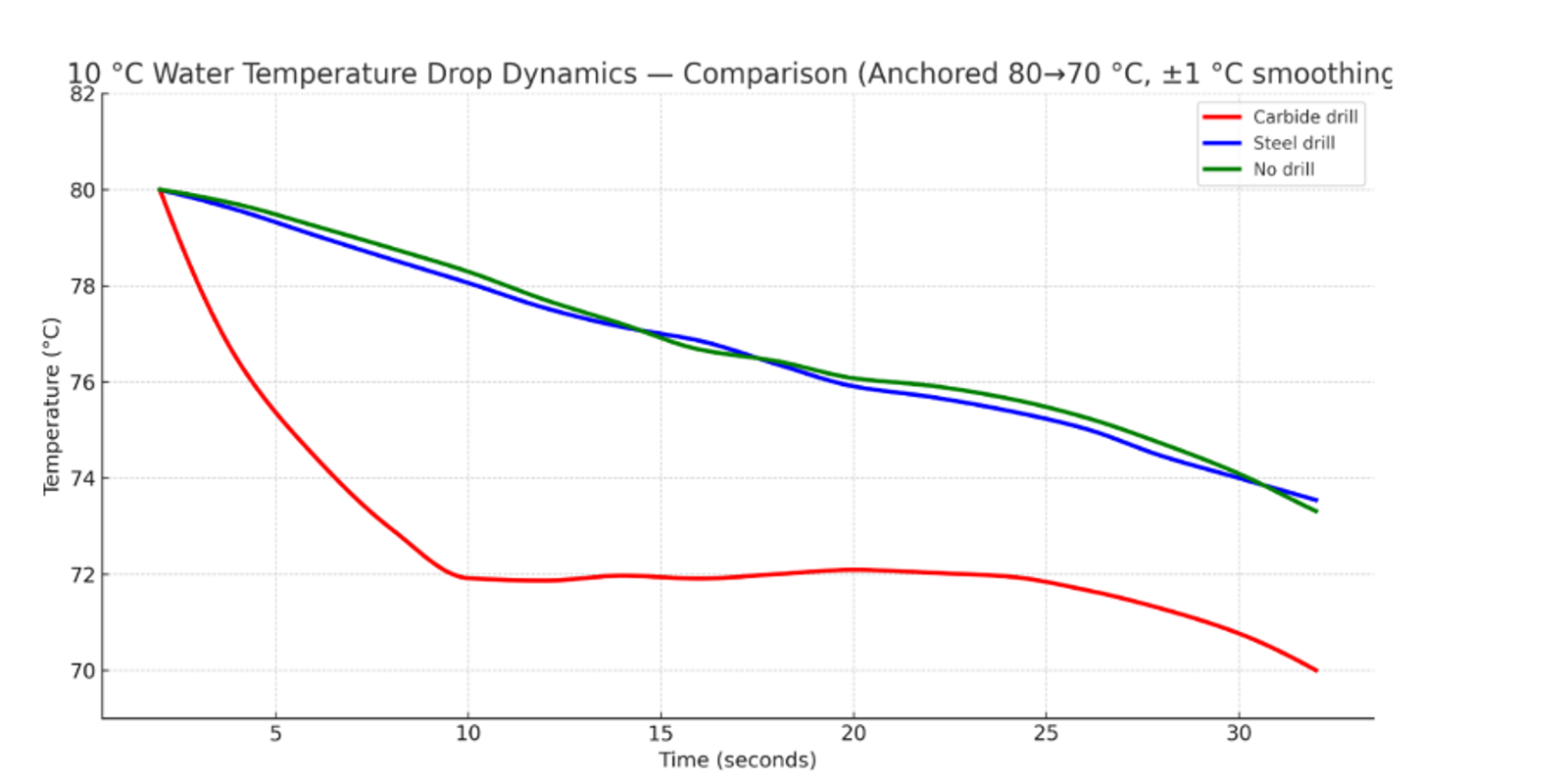

Figure 1. Temperature drop dynamic comparison from the bench experiment (anchored 80→70°C; ±1°C smoothing).

Carbide showed a markedly steeper early cooling curve than steel or the no-drill control.

This bench study does not claim to reproduce every aspect of clinical implant drilling. Bone is not water. Clinical variables such as pressure, cortical density, drill sharpness, irrigation, sleeve guidance and drilling time all influence temperature. However, the experiment isolates one important variable: material conductivity. It shows that when the drill material is changed, the heat-transfer behaviour changes dramatically.

From cutting tool to thermal tool

The implication is simple but important: implant drills should be evaluated not only by their cutting ability but also by their thermal behaviour.

A sharp drill cuts more efficiently and produces less friction. A conductive drill can remove heat more efficiently once heat is produced. Tungsten carbide offers both advantages. It is known for its hardness, edge stability and high thermal conductivity compared with stainless steel.

This combination is especially relevant in dense cortical bone, where resistance is higher, and heat risk increases. It is also relevant in guided surgery, where sleeves may limit external irrigation access, and heat may be more easily trapped within the drilling channel.

In these situations, the drill’s ability to evacuate heat through its own body becomes more than a material detail. It becomes a biological safety factor.

The Crown Down method

The Crown Down implant drilling method differs from the traditional sequential drilling protocol in its approach to osteotomy preparation. Instead of relying on many gradually increasing drills, the method emphasises controlled cortical relief followed by precise final preparation.

One of the principles of the technique is to manage the cortical component of the osteotomy first. Since cortical bone is dense, less elastic and more heat-sensitive than trabecular bone, reducing excessive compression at the crestal cortical region may help make implant insertion more controlled and biologically respectful.

When this method is combined with solid carbide drills, the clinical goal is not only mechanical precision but also thermal control. The drill is expected to cut efficiently, maintain sharpness, and dissipate heat from the bone-drill interface more effectively than conventional steel drills.

A shift in how clinicians think about osteotomy

Implant dentistry has advanced enormously in implant macro-design, surface technology, digital planning and guided surgery. Yet the drilling step is often treated as a routine mechanical sequence. This may be a mistake.

The osteotomy is the first direct biological conversation between the clinician and the bone. If the bone is overheated, over-compressed or traumatised during preparation, the implant begins its healing process at a disadvantage.

Carbide-implant drills prompt clinicians to rethink this step. The question is no longer only, “Can this drill make the hole?” The better question is, “How does this drill interact with living bone while making the osteotomy?”

Thermal conductivity is central to that question.

Clinical relevance and future research

The bench experiment supports the hypothesis that carbide drills can function as efficient heat sinks. By reaching 75°C far faster than steel in a controlled hot-water model, carbide demonstrated a markedly greater ability to remove heat from a small heated volume.

Future studies should expand this work in ex vivo and clinical models. Important next steps include measuring temperature changes in cortical bone, comparing drilling protocols under different speeds and pressures, evaluating guided surgery scenarios and studying drill wear over repeated use.

Nevertheless, the current findings reinforce an important material-science principle: the composition of the drill matters. If two drills have similar geometry but different thermal conductivity, they should not be expected to behave the same biologically.

Conclusion

The future of implant dentistry will not be shaped only by implant surfaces, digital workflows or prosthetic materials. It will also be shaped by the instruments used to prepare bone.

Tungsten carbide implant drills represent a significant step forward, combining high cutting efficiency with superior thermal conductivity. In a controlled bench experiment, a Ø5.5 mm carbide drill cooled a hot micro-volume to 75°C in approximately 3.4 seconds, compared with approximately 24.1 seconds for a steel implant drill. This rapid heat-sink behaviour suggests a potential advantage in reducing thermal exposure at the osteotomy interface.

For clinicians, the message is clear: implant drilling is not only a mechanical act. It is a thermal and biological event. Choosing a drill material that respects this reality may help make implant surgery safer, more efficient and more biologically sound.

References

1. Eriksson AR, Albrektsson T. Temperature threshold levels for heat-induced bone tissue injury: a vital-microscopic study in the rabbit. J Prosthet Dent. 1983;50(1):101-107.
2. Eriksson A, Albrektsson T, Grane B, McQueen D. Thermal injury to bone. A vital-microscopic description of heat effects. Int J Oral Surg. 1982;11(2):115-121.
3. Matthews LS, Hirsch C. Temperatures measured in human cortical bone when drilling. J Bone Joint Surg Am. 1972;54(2):297-308.
4. Sharawy M, Misch C, Weller N, Tehemar S. Heat generation during implant drilling: the significance of motor speed. J Oral Maxillofac Surg. 2002;60(10):1160-1169.
5. Augustin G, Davila S, Mihoci K, Vedrina DS, Antabak A. Cortical bone drilling and thermal osteonecrosis. Int Orthop. 2012;36(4):777-782.
6. Mishra SK, Chowdhary R, Chrcanovic BR. Heat generated by dental implant drills during osteotomy and implant site preparation: a review. J Indian Prosthodont Soc. 2014;14(2):131-143.
7. Jung O, Henningsen A, Smeets R, et al. Heat development during medical drilling: influencing factors, measurements and reduction. In Vivo. 2021;35(6):3011-3021.
8. Chakraborty S, Bandari R, Murugan S, et al. The effect of dental implant drill materials on heat generation—A narrative review. Craniomaxillofac Trauma Reconstr Open. 2024;8(1):e63-e72.
9. Virin Y. 5°C Water Temperature Drop Dynamics with Carbide vs. Steel Drills. Bench experiment report. 2025.
